Adhunik Panel AC Restoration at FAG Schaeffler | Manjusar GIDC Precision Cooling

1. Initial Diagnosis: Noise & Thermal Failure

The Atlas team was mobilized to the FAG Schaeffler facility in Manjusar GIDC to troubleshoot an Adhunik Brand Panel AC unit. The system was reported to be producing high-decibel erratic noise and had completely ceased cooling, posing a direct threat to the sensitive CNC/VMC control electronics. Upon deep inspection, our engineers identified a critical refrigerant leak compounded by severe mechanical misalignment: both the condenser coil and the fan assembly had shifted and bent out of position.

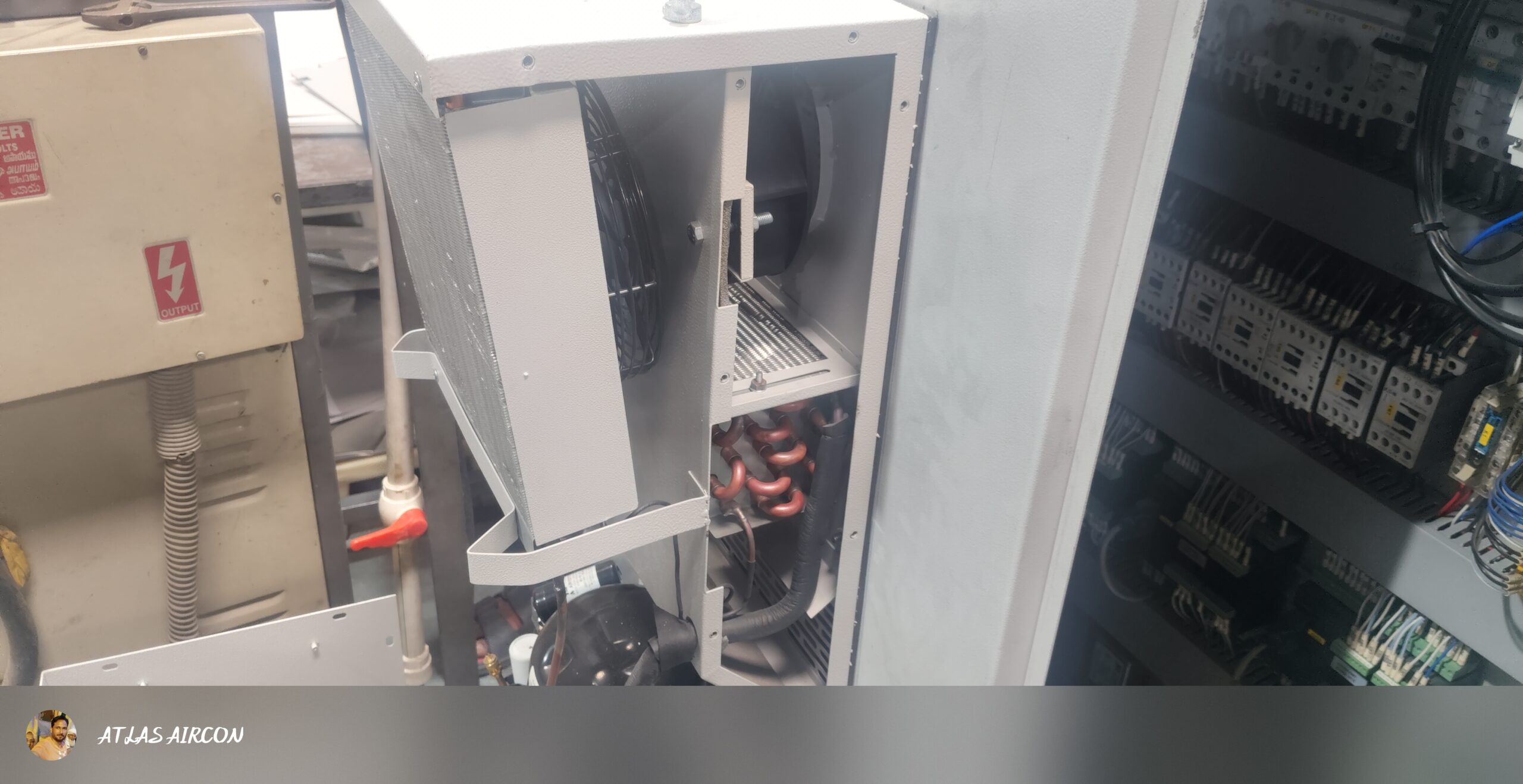

Fig 2.1: Field view of Atlas Aircon technicians performing structural mechanical restoration on the Adhunik unit at the FAG Schaeffler site.

2. Technical Execution & Optimization

• Mechanical Correction: Performed precision straightening of the condenser fins and reset the fan motor mounting to eliminate erratic noise and restore laminar airflow.
• Circuit Sealing: Identified the high-pressure leak point, executed a high-purity silver-brazing repair, and performed a nitrogen pressure test at 350 PSI.
• Vacuum & Recharge: Pulled a deep vacuum down to 500 microns to remove moisture, followed by a precise weight-based refrigerant charge to factory specifications.
